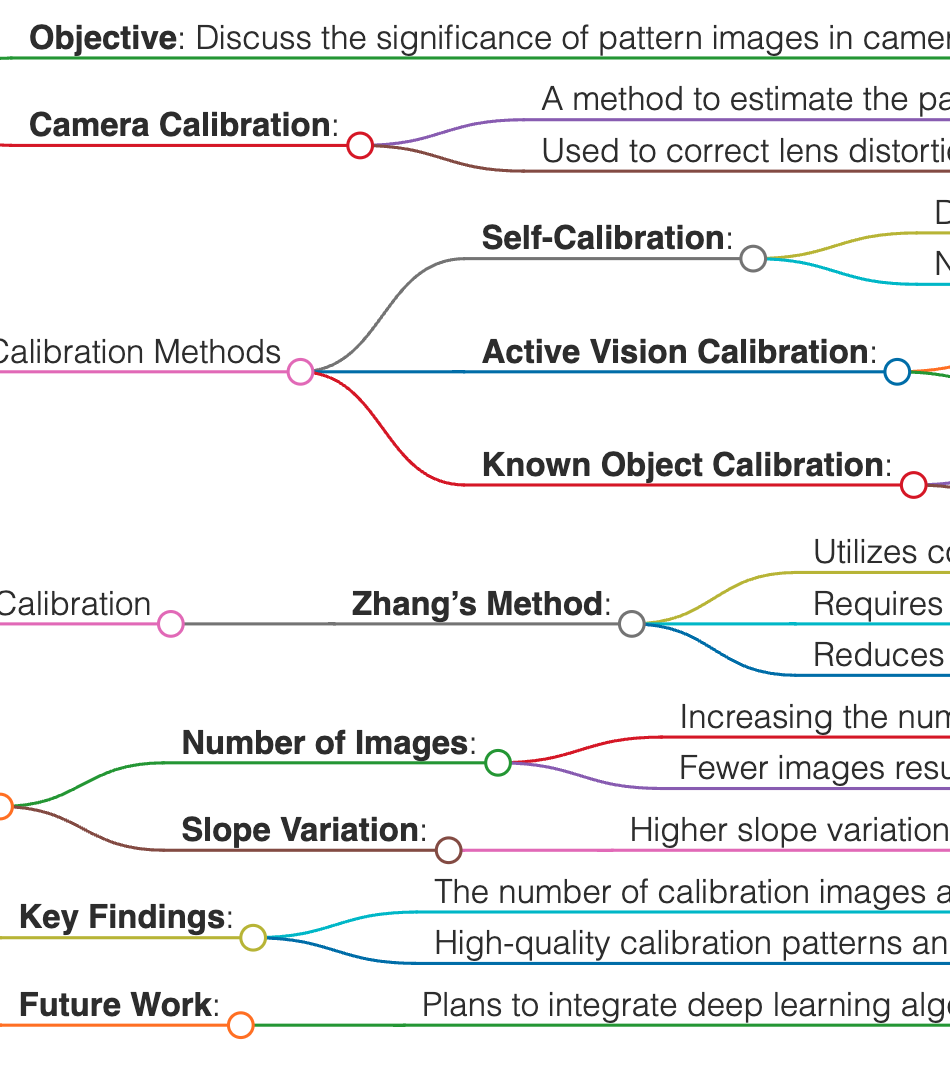

Pattern Image Significance for Camera Calibration

1. Introduction

• Objective: Discuss the significance of pattern images in camera calibration.
• Camera Calibration:
  • A method to estimate the parameters of a pinhole camera model.
  • Used to correct lens distortion and for 3D reconstruction in applications like machine vision, robotics, and navigation systems.

2. Categories of Camera Calibration Methods

• Self-Calibration:
  • Does not rely on a known calibration object.
  • Nonlinear, sensitive to noise, requires more computational power.
• Active Vision Calibration:
  • Based on controlled camera motion.
  • Solves parameters by using images captured during known motions.
• Known Object Calibration:
  • Traditional method using calibration patterns like chessboards.
  • High accuracy but requires specific knowledge of the calibration environment.

3. Algorithms for Camera Calibration

• Zhang’s Method:
  • Utilizes common calibration points and self-calibration algorithms.
  • Requires multiple images of a known calibration pattern from different angles.
  • Reduces reprojection errors and enhances calibration accuracy.

4. Experimental Findings

• Number of Images:
  • Increasing the number of calibration images improves accuracy.
  • Fewer images result in higher re-projection errors.
• Slope Variation:
  • Higher slope variation in calibration pattern images reduces reprojection errors.

5. Conclusion

• Key Findings:
  • The number of calibration images and slope variation play a crucial role in calibration accuracy.
  • High-quality calibration patterns and field of view improve calibration results.
• Future Work:
  • Plans to integrate deep learning algorithms to optimize camera calibration.
